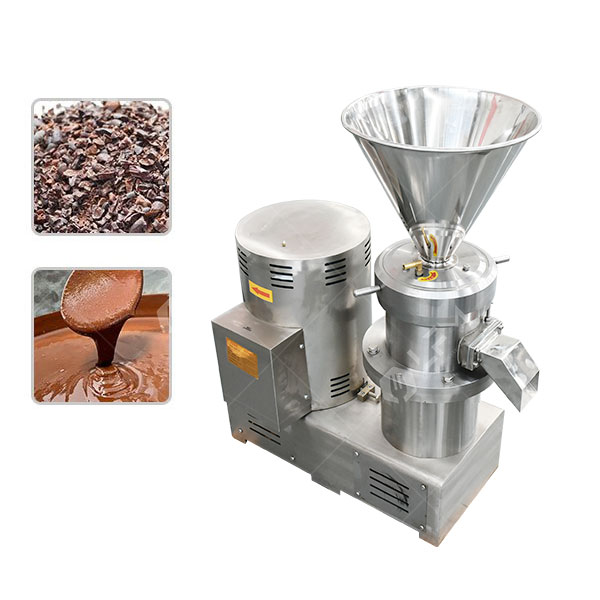

200 kg/h Cocoa Nibs Grinding Machine Manufacturer

  • MOQ:1 set
  • Certification: CE
  • Supply Ability: 200 sets per month
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao Port
  • Country Of Origin: China


Grinding cocoa nibs into cocoa mass. The grinding machine can also make nut butte, like peanut butter, cashew butter, etc.

Main Feature

High efficiency, large capacity, corrosion resistance and long service life.


The cocoa nibs grinding machine is mainly used for grinding cocoa nibs in the cocoa powder processing line. We usually put the peeled cocoa beans into a cocoa nibs grinder to get cocoa mass.

This cocoa grinder machine is indispensable in cocoa production, because only the cocoa beans are ground into cocoa liquor for the subsequent cocoa butter express and cocoa powder grinding. Instead of directly grinding raw cocoa beans into cocoa mass, we put peeled cocoa nibs in the machine. we can provide you with different production capacity equipment, from 200 kg/h to 1 t/h.

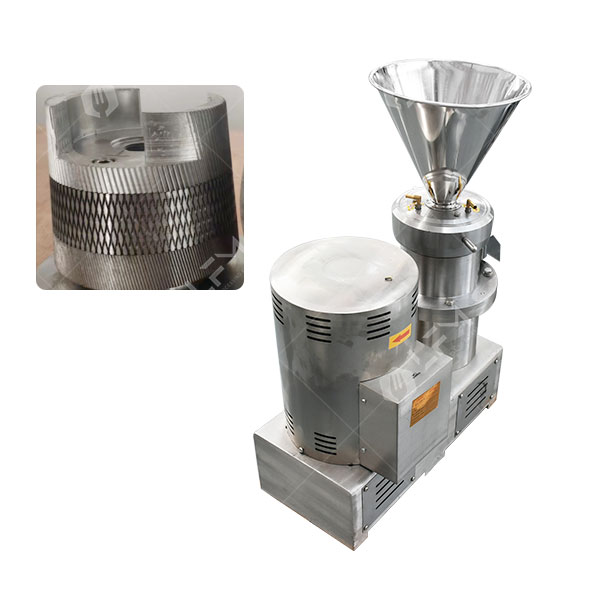

Cocoa Nibs Grinding Machine Manufacturer
Working Principle of Cocoa Nibs Grinding Machine:
The machine is driven by an electric motor and consists of driving rotating gear and matching fixed gear. There is an adjustable tiny gap between the two grinding bodies. When the cocoa nibs passes through this gap, due to the sharp velocity gradient between the rotating gear and the fixed gear, the cocoa beans are subjected to strong friction and become cocoa mass.

Cocoa nibs grinding can better reduce the fat content in cocoa powder. Our machine is simple in structure and stable in operation. In the process of grinding the cocoa nibs, the large particles will become particles of only about 0.15mm under the high-speed shearing and friction of the colloidal grinding rotor, so that the grease in the small particles can be removed in a shorter time.

Advantages of Our Cocoa Nibs Grinding Machine
① The cocoa nibs grinding can be achieved in a very short time, and the finished granules can reach 80-100mesh.
② High efficiency and output, about twice the efficiency of ball grinding and roller grinding.
③ Simple structure, convenient operation, small footprint. Since the gap between the fixed grinding disc and the rotating grinding disc is extremely small, the machining accuracy is high.

To get cocoa powder, a complete cocoa powder production line is necessary. Cocoa beans need to be cleaned and peeled before grinding, and cocoa butter pressing and cocoa powder grinding are required after the cocoa liquor is produced, so as to finally obtain cocoa powder.
High Efficiency Cocoa Grinding Machine Price

As a cocoa grinding machine manufacturer, we can also provide complete solutions of efficient cocoa powder processing, and can customize different cocoa powder processing machinery according to customer needs, such as: cocoa bean peeler, cocoa bean roaster, cocoa nibs grinder, cocoa butter press and cocoa powder grinder.

If you are interested in cocoa processing machinery, please contact us!
WhatsApp/Mobile: +8615515597212

Technical Data

Model JMS-80 JMS-110 JMS-130 JMS-180
Fineness(mesh) 80-100 80-100 80-100 80-100
Output(kg/h) 70-100 100-200 400-600 800-1000
Power(kw) 4 7.5 11-15 18.5-22
Dimension(mm) 680*380*930 750*450*1000 990*450*1100 1000*480*1150
Weight(kg) 210 280 400 450
