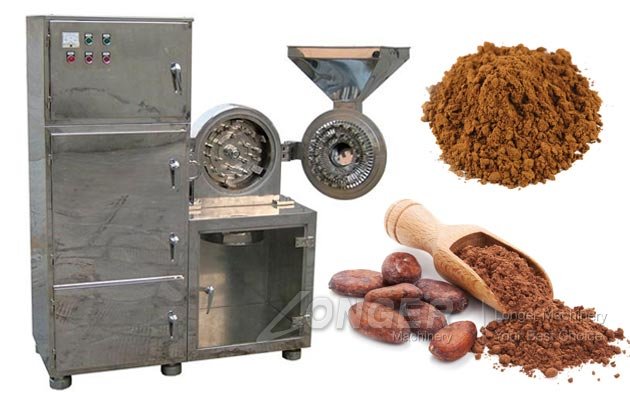

Cocoa Cake Grinder|Powder Grinding Machine

  • MOQ:1 set
  • Certification: CE
  • Supply Ability: 200 sets per month
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao Port
  • Country Of Origin: China


Grinding the cocoa cake to cocoa powder, make spices powder.

Main Feature

Good quality, perfect powder grinding effect, easy clean, high efficiency.


Structure and Working Principle of Cocoa Cake Grinder:
The comminution unit is composed of a pulverizer, a ESC material collection box and a ESC vacuum cleaner. The dust flies in the process of crushing. The working principle of this machine is that the material enters the crushing chamber. It is crushed under the action of impact, shear, friction and impact between materials between the high-speed rotating disk and the fixed gear tray. After screening, it becomes the required powder. The pulverizer, material collection box and vacuum cleaner of the comminution unit are all made of stainless steel. Comply with the requirements of "GMP" for drug production.
Application Scope of Cocoa Powder Grinding Machine:
This machine is suitable for the crushing of brittle materials, such as pharmaceutical, chemical, food and pesticide industries, and is very widely used.
The machine uses the high-speed relative motion of movable tooth disc and fixed tooth to ask for the crushing effect to be crushed by the combined action of impact, friction and impact between materials.
Cocoa Cake Grinder
Cocoa Cake Grinding Machine Instructions
Because the universal mill for the entire box, unboxing, move it to the appropriate location, place a smooth, power, you can try.
Before use should check the transmission parts are loose and other abnormal phenomenon, the direction of the machine should be consistent with the direction of the arrow.
Use no-load test for 1-2 minutes, until no abnormal phenomenon can be expected to feed, feed should gradually increase the volume of traffic, and observe the motor power consumption and operation at any time until the balance of feeding and power supply is working properly, Dead cut off the gate, to work. Midway as the material is too wet, too much sticky sticky, affecting the powder, the material should be dried or replaced thicker sieve. Replace the sieve simply open the front cover can be carried out, install the front cover should pay attention to the elastic hand wheel on both sides, to ensure that the front cover and the chassis sealed. Stop feeding before stopping, let the machine run for 5-20 minutes before stopping. In order to reduce the residual material.
Cocoa Cake Grinding Machine

Technical Data

Model LG-30B-C
Capacity 100-300 kg/h
Revolution of spindle 3800r/min
Size of fed material (mm) 10
Crushing size 60-120 mesh
Crushing motor 5.5 kw
Cleaning motor 0.75 kw
Dimension(mm) 1200*650*1650
Weight 320 kg
