Moringa Leaf Grinding|Powder Making Machine

  • MOQ:1 set
  • Brand:LONGER MACHINERY
  • Certification: CE
  • Supply Ability: 200 sets per month
  • PAY METHOD: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao Port
  • Country Of Origin: China

Application

Suitable for medicine, agriculture, food, chemical, alloy, metallurgy, geology, scientific research and other units.

Main Feature

Low working noise, work smoothly, strong wear-resistant corrosion-resistant, high efficiency.

Features

Application of Moringa Leaf Grinding Machine
This machine is suitable for medicine, agriculture, food, chemical, alloy, metallurgy, geology, scientific research and other units; It can be used to crush more varieties, small quantities of Chinese herbal medicine, precious herbs, ores, chemical raw materials, moringa leaf etc.
Working Principle of Moringa Powder Making Machine
The machine uses impact crushing method, the material into the crushing chamber, by the high-speed rotary six hammer impact, the ring gear and materials collide with each other and crushed, crushed material with the help of air flow through the sieve into Sheng Fen bags, leaving no residue.

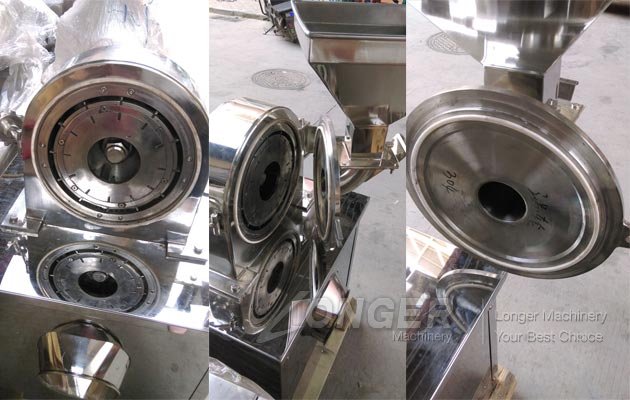

Moringa Leaf Grinding Machine
Advantages of Moringa Seed Powder Machine
1. The machine's powder chamber with a fully enclosed silencer structure, which can effectively reduce the working noise.
2. The machine is equipped with cooling device, so that the temperature is reduced, work more smoothly.
3. The machine is made of 304 stainless steel, with strong wear-resistant corrosion-resistant features, suitable for processing high-level and corrosive materials.
4. The machine has the advantages of high efficiency, low noise, reliable working performance and product quality, safe operation, low drug hygiene and loss.

Instructions for Moringa Powder Grinding Machine
1. Universal crusher is the entire box, unboxing, moved to the appropriate location, place a smooth, power, you can try.
2. Before use should check the transmission parts are loose and other abnormal phenomenon, the direction of the machine should be consistent with the direction of the arrow.
3. Use no-load test for 1-2 minutes, until no abnormal phenomenon can be expected to feed, feed should gradually increase the volume of traffic, and observe the motor power consumption and operation at any time until the balance of feeding and power supply is working properly, Dead cut off the gate, to work.
4. In the middle, if the material is too wet, too sticky sticky, affecting the powder, the material should be drying or replace the thicker sieve. Replace the sieve simply open the front cover can be carried out, install the front cover should pay attention to the elastic hand wheel on both sides, to ensure that the front cover and the chassis sealed. Stop feeding before stopping, let the machine run for 5-20 minutes before stopping. In order to reduce the residual material.
Moringa Powder Making Machine

Technical Data

Model LG-20B-C LG-30B-C LG40B-C LG60B
Capacity(kg/h) 60-150kg/h 100-300kg/h 160-800kg/h 500-1500kg/h
Revolution of spindle 4500r/min 3800r/min 3400r/min 2800r/min
Grinding size 10-200 mesh
Crusher motor 4kw 5.5kw 11kw 15kw
Cleaner motor 0.75kw
Dimension (mm) 550*600*1250 600*700*1450 800*900*1550 1000*900*1680
Weight (kg) 250 320 550 680
