The broad bean frying machine is an automatic frying production line, including a deep fryer, a de-oiling machine and a seasoning machine. This fryer machine is suitable for frying green peas, broad beans, peanuts, soybeans, chickpeas, etc. Gas heating type, high thermal efficiency, high quality and consistent fried food.

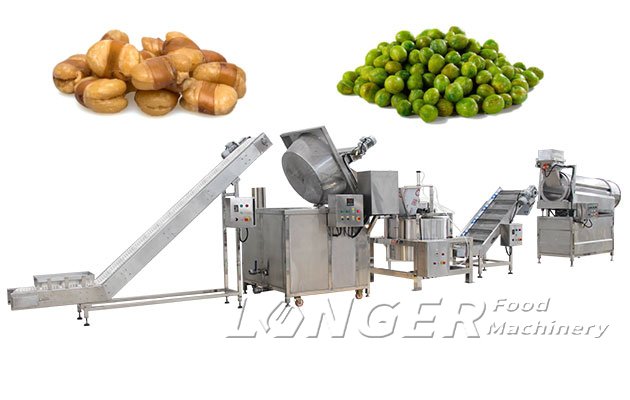

Fully Auatomatic Broad Bean Frying Machine

Fully Auatomatic Broad Bean Frying Machine

Introduction of Automatic Broad Bean Frying Line

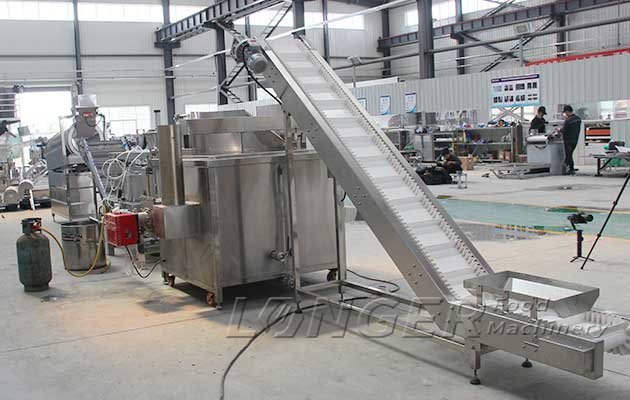

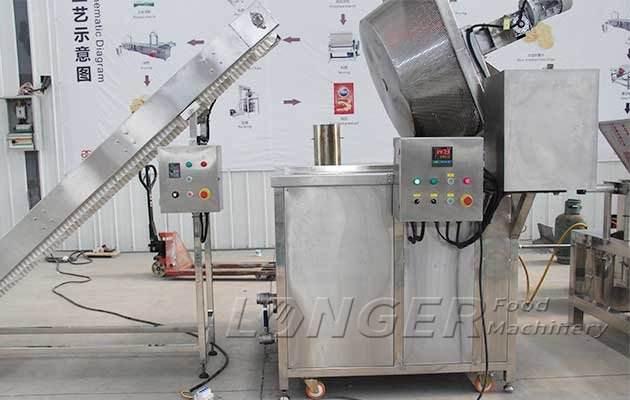

1. Broad Bean Frying Machine

This is a round pan fryer, which can be heated by electricity and gas, and is suitable for small and medium-sized food factories.

Automatic turning and discharging, button operation, high degree of automation.

Optional oil-water separation and pure oil heating type. Oil-water separation removes debris, prolongs the oil life cycle and reduces oil costs.

Automatic temperature control to ensure proper frying temperature.

2. Deoiling Machine

The deoiling machine uses centrifugal motion as its working principle. The electric motor drives the inner tank to rotate at a high speed to shake off the oil on the surface of the fried beans to achieve the purpose of degreasing. The whole process is fully automatic, with a high degree of automation, and the deoiling time can be set freely.

3. Seasoning Machine (Drum Type)

The drum is inclined to the horizontal plane. When working, the motor drives the screw device to rotate, and evenly sprinkles the seasonings into the drum to mix with the fried beans. The fried beans enter from the inlet, rotate together with the drum, and discharge from the outlet.

Inclined seasoning drum, fully automatic control of speed and material capacity, also equipped with a spiral powder device, not easy to block.

Advantages of Green Peas Fryer Machine

The gas-heated fryer adopts advanced heat exchange mechanism, which greatly improves heat exchange efficiency and reduces heat loss.
With dual temperature control system, the oil temperature is accurately controlled within 3°C, so that the quality of fried bean products is highly consistent.
With its own mixing function, the material can be fried evenly.
With the advanced oil-water separation frying technology, the residues produced during the frying process of the beans will be automatically filtered into the water to ensure the cleanliness of the oil body and prolong the service life of the oil.
The whole machine is made of food grade 304 stainless steel to meet the requirements of food processing.

Stainless Steel Green Peas Fryer Machine

Use Range of Broad Bean Fryer Machine:

This fryer is mainly suitable for small and medium-sized food factories.

Applicable products are: broad beans, green beans, peanuts and other nuts; sweet potato chips, french fries, potato chips and other snacks; fish nuggets, chicken nuggets and other meat products; dried tofu, tofu puffs and other soy products, etc.

Technical Data

No.	Name	Power(kw)	Dimension(mm)
1	Batch Type Fryer	Heating:60 Stirring:1.1	215017501500
2	Oil Filter Tank	1.5	8008001000
3	Deoiling Machine	0.5	125012501550
4	Lifting Machine	0.75	20007001500
5	Flavoring Machine	0.75	14009001600
6	Air Dryer	0.55*6	400012001500
7	Packing Machine	3	126510601600

Automatic Broad Bean Frying Line Green Peas Fryer Machine
