Peanut Butter Production Line for Business|Peanut Butter Making Machine Line Suppliers

  • MOQ:1 set
  • Certification: CE
  • Supply Ability: 200 sets per month
  • Warranty Time: 12 Months
  • LOADING PORT: Qingdao Port
  • Country Of Origin: China


production of the peanut butter,sesame paste/tahini,Almond Butter.It is an ideal equipments for food processing plant.

Main Feature

High automation, easy-operating integrated control, stable performance, high product quality.

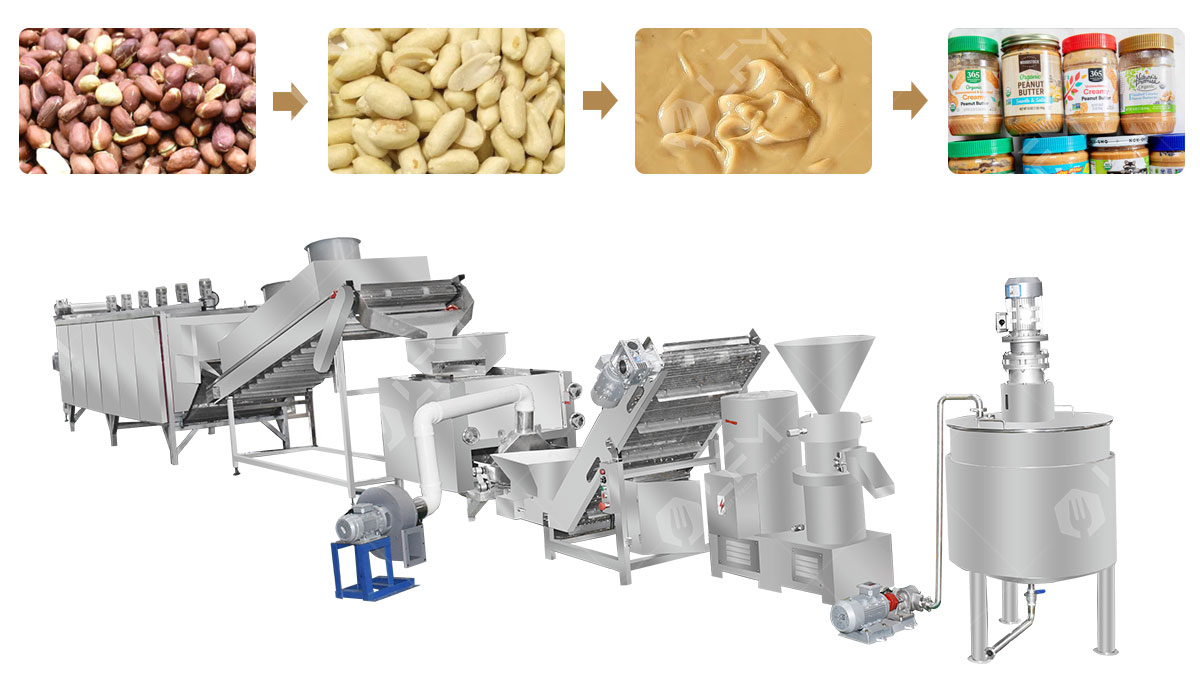

Component of Peanut Butter Production Line:
Elevator--Roasting---Cooling--Peeling--Selecting --Milling--Mixing--Cooling--De-Gassing--Liquid Filling Machine

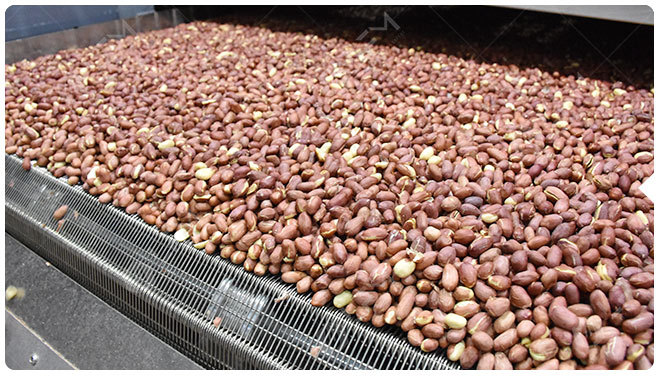

1) Roasting: Batch roaster’s working temperature is 200-210 ºC, 20-30 minutes.use batch roaster will bake some delicious smells.
2) Cooling: Peanut will be send cooling belt to cool.
3) Peeling: put the roasted peanuts into peeler to take off the red skin,the double rollers will function the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical.

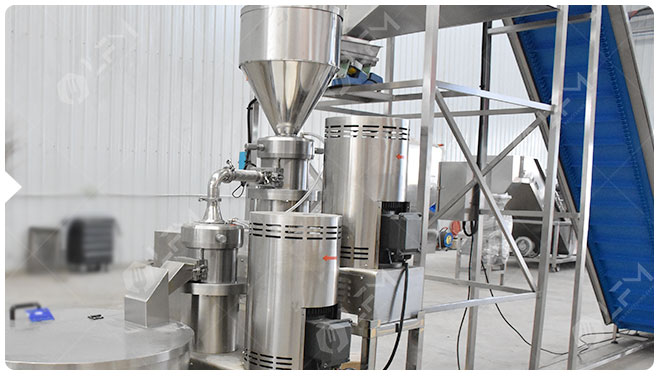

4) Primary grinding:Using steel grinder to make the first grinding;
5) Second grinding:Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7um, temperature of grinding is controlled below 68C.

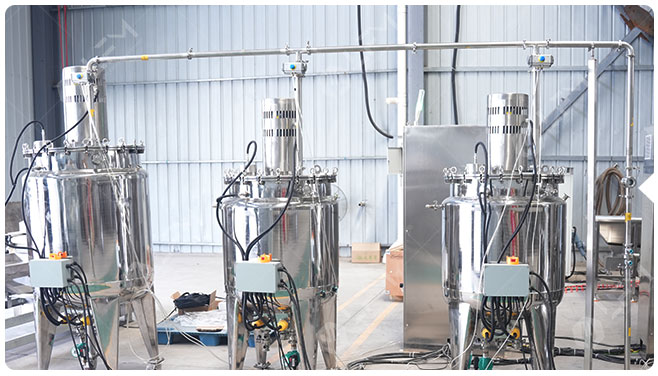

6) Mixing:make the butter more homogeneous.
7) Cooling: the butter through second grinding should be cooled immediately. The temperature should go down 45C.
8) Degasser : Take out the air from peanut butter.
9) Storage tank: settling down in the storage tank till the temperature drop to air temperature.
10) Packing: by the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle.

Advantage and Application of Peanut Butter Making Machine Line:
1) The character is high automation,good reliability,full enclosed production,No pollution,the finished peanut butter has the export standard.The detailed technology and capacity can be customize according to the customer requirements.
2) This peanut butter production line can produce natural peanut butter,stable peanut butter,smooth type peanut butter,salty peanut butter,sweet peanut butter,particle type peanut butter and so on,it also can produce the tahini and walnut butter,can be equipped with variety of configuration and capacity according to the different customer requirements.In a word,this production line has the advanced technology,stable quality of products.It a best choice for food processing plant.

Peanut Butter Production Factory Video:

We also supply sesame taini production linealmond butter production line etc, if you need need any butter production line, just feel free to contact me. We sincerely look forward to cooperating with you!

Technical Data

1 Feeding Machine 0.55 700*700*800 1
2 Hoister 0.75 1000*500*2800 1
3 Continuous Roaster Machine 24 3000*1200*2600 1
4 Elevator 0.75 1000*500*2800 1
5 Continuous Cooling Machine 5 3200*800*2400 1
6 Peeling Machine 0.74 1100*350*1100 1
7 Selection Belt 0.75 5000*800*1000 1
8 Elevator 0.75 1000*500*2800 1
9 Storing and Feeding Machine 0.55 700*700*2200 1
10 Grinding Machine 5.5 900*350*900 1
11 Storage tank   150L 1
12 Paste pump 2.2 1200*300*350 1
13 Mixing tank 2.2 200L 1
14 Vacuum tank 2.2 200L 1
15 Paste pump 2.2 1200*300*350 1
16 Control cabinet     1
17 Pipeline


1. I need a 300kg/h peanut butter production line, can you supply it?
Yes, the capacity of the machine can be customized according to your requirements.
2. I also want to buy a peanut butter filling machine. Do you manufacture it?
Yes, we also manufacture filling machine and packing machine.

3.Which kind of fuel of roasting machine I can use?
Electric,coal and gas model.
4. What is the voltage/phase for this machine?
We normally make voltage into 220V/50HZ/Single phase or 380V/50HZ/Three Phase. But it can be made according to clients' demand, like 110V/60HZ/Three phase and so on.
5. What kind of packing box is?
We pack machines in a exported standard wooden case, no vermin, germs. The wooden box allows the machine to be better protected during transport.
6. What's the payment mode?
T/T, L/C, Western Union or Money Gram.
7. How long time I can get the machine?
Usually, the deliver time is about 20 days.
8. How should I do if meet some trouble while using?
Don't worry about that. We are always be pleased to provide using support to clients. We can take a video for showing how to resolve the problem, and write detail resolution to you.
